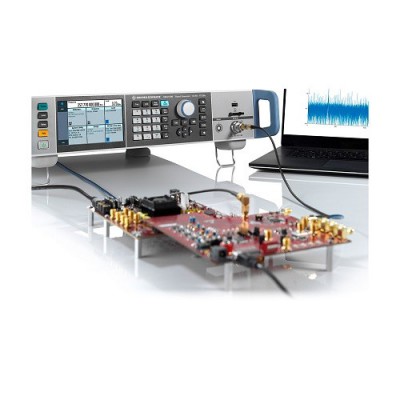

R&S SMA100B 射频和微波信号发生器图1R&S SMA100B 射频和微波信号发生器图2R&S SMA100B 射频和微波信号发生器图3

R&S SMA100B 射频和微波信号发生器

2022-02-09 10:152620询价
价格:¥0.00/件
品牌:罗德与施瓦茨
发货:3天内
发送询价

简介:R&S SMA100B 射频和微波信号发生器



R&S®SMA100B 射频和微波信号发生器提供卓越性能。在维持最高输出功率的同时提供最纯净的输出信号,远超竞争对手。作为优质的信号发生器,它可以完成射频半导体、无线通信以及航空航天和国防领域极苛刻的组件、模块和系统测试与测量任务。



主要特点:R&S SMA100B 射频和微波信号发生器





规格:R&S SMA100B 射频和微波信号发生器



>

Frequency
Frequency rangeR&S®SMAB-B1038 kHz to 3 GHz

R&S®SMAB-B1068 kHz to 6 GHz

R&S®SMAB-B1128 kHz to 12.75 GHz

R&S®SMAB-B1208 kHz to 20 GHz

R&S®SMAB-B1318 kHz to 31.8 GHz

R&S®SMAB-B140/-B140N8 kHz to 40 GHz

R&S®SMAB-B150/-B150N8 kHz to 50 GHz

R&S®SMAB-B167/-B167N8 kHz to 67 GHz (overrange up to 72 GHz)
Level
Maximum specified output power (PEP)R&S®SMAB-B103/-B106

standard

f = 3 GHz+19 dBm

f = 6 GHz+19 dBm

with R&S®SMAB-K31

f = 3 GHz+25 dBm

f = 6 GHz+25 dBm

with R&S®SMAB-K31 and R&S®SMAB-B32

f = 3 GHz+30 dBm

f = 6 GHz+30 dBm

R&S®SMAB-B112/-B120

standard

f = 12.75 GHz+18 dBm

f = 20 GHz+17 dBm

with R&S®SMAB-K33

f = 12.75 GHz+20 dBm

f = 20 GHz+20 dBm

with R&S®SMAB-K33 and R&S®SMAB-B34

f = 12.75 GHz+27 dBm

f = 20 GHz+24 dBm

R&S®SMAB-B131/-B140/-B140N

standard

f = 31.8 GHz+13 dBm

f = 40 GHz+13 dBm

with R&S®SMAB-B35

f = 31.8 GHz+17 dBm

f = 40 GHz+16 dBm

with R&S®SMAB-B35 and R&S®SMAB-K36

f = 31.8 GHz+22 dBm

f = 40 GHz+19 dBm

R&S®SMAB-B150/-B150N/-B167/-B167N

standard

f = 50 GHz+5 dBm

f = 67 GHz+5 dBm

with R&S®SMAB-B37/-B39

f = 50 GHz+11 dBm

f = 67 GHz+9 dBm

with R&S®SMAB-B37/-B39 and R&S®SMAB-K38/-K40

f = 50 GHz+18 dBm

f = 67 GHz+10 dBm
Spectral purity
SSB phase noisef = 1 GHz, 1 Hz measurement bandwidth

standard,
carrier offset = 20 kHz
<-135 dBc, –140 dBc (typ.)

with R&S®SMAB-B709,
carrier offset = 10 kHz
<-140 dBc

with R&S®SMAB-B710(N),
carrier offset = 10 kHz
<-140 dBc, –145 dBc (typ.)

with R&S®SMAB-B711(N),
carrier offset = 10 kHz
<-147 dBc, –152 dBc (typ.)
SSB phase noise (continued)f = 10 GHz,
1 Hz measurement bandwidth


standard,
carrier offset = 20 kHz
–115 dBc, –120 dBc (typ.)

with R&S®SMAB-B709,
carrier offset = 10 kHz
<-120 dBc

with R&S®SMAB-B710,
carrier offset = 10 kHz
–120 dBc, –125 dBc (typ.)

with R&S®SMAB-B711,
carrier offset = 10 kHz
–128 dBc, –132 dBc (typ.)
Harmonics
Instruments equipped with R&S®SMAB-B103/-B106 and R&S®SMAB-K31/-B32 options10 MHz < f ≤ 6 GHz, P = 18 dBm<-60 dBc
Instruments equipped with R&S®SMAB-B112/-B120 and R&S®SMAB-K33/-B34 options10 MHz < f ≤ 20 GHz, P = 16 dBm<-55 dBc
Instruments equipped with R&S®SMAB-B131/-B140(N)/-B150(N)/-B167(N) and R&S®SMAB-B35/-K36/-B37/-K38/-B39/-K40 options10 MHz < f ≤ 31.8 GHz, P = 13 dBm<-55 dBc
Nonharmonicsf = 1 GHz, > 10 kHz from carrier, 10 dBm<-92 dBc

f = 1 GHz, > 10 kHz from carrier, 10 dBm with R&S®SMAB-B711(N) option<-100 dBc
Supported modulation modeswith R&S®SMAB-K720 optionAM, FM, φM
Pulse modulationwith R&S®SMAB-K22 option
Rise/fall timeR&S®SMAB-K22, f > 700 MHz<10 ns, 5 ns (typ.)
On/off ratioR&S®SMAB-K22>80 dB
Minimum pulse widthR&S®SMAB-K22<20 ns
