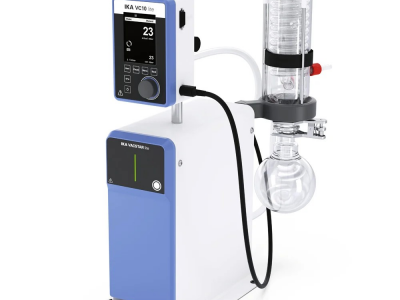

VACSTAR lite Starter Plus Solution Vacuum pump
The VACSTAR lite Starter Plus Solution package is a modern, user and environmentally friendly solution for your vacuum applications in the laboratory. By combining the VC 10 lite vacuum controller with the VACSTAR lite vacuum pump, the desired setpoint can be conveniently set manually via the large and easy-to-read TFT display. In addition, the program mode enables simple programming of several ramp steps to efficiently control complex simulations. The VSE 1 emission condenser prevents solvents from being released into the room air, thus protecting users and the environment.
This solution is perfect for a variety of classic laboratory applications, including separation, filtration and drying processes. Ideal for use in conjunction with rotary evaporators, reactors, tempering chambers, centrifuges and other laboratory equipment.
Advantages and technical features:
Integrated device communication: the vacuum controller seamlessly synchronizes with circulators, resulting in optimized lab procedures and increased overall performance.
Longer lifecycle: An integrated valve cleaning function removes solvent residues, extending system life and reducing maintenance.
USB/RS232 interfaces: These allow connection to labworldsoft® laboratory software for advanced process control.
Increased safety: The VSE 1 emission condenser ensures increased user safety by preventing solvent residues from entering the room air.
交货清单
VACSTAR lite
VC 10 lite
VSE 1
VC 10.600 Stand pole
技术参数
| 泵流量(50/60 Hz) | 1 m³/h |
| 最大泵速（50/60Hz） | 16.67 l/min |
| 终态压力(无气镇阀) | 9 mbar |
| 抽吸等级 | 2 |
| 真空腔体 | 2 |
| 入口连接直径 | 8 mm |
| 出口连接直接 | 8 mm |
| 输入压力 | 10 - 1030 mbar |
| 模拟速度真空控制 | 是 |
| 速度范围 | 285 - 1100 rpm |
| 转速 (50Hz) | 1100 rpm |
| 转速 (60Hz) | 1100 rpm |
| 额定速度 | 1100 rpm |
| 显示屏 | TFT |
| 压力单位/刻度 | mbar, hPa, mmHg, Torr |
| 真空传感器 | 是 |
| 真空传感器类型 | 陶瓷Al2O3 |
| 压力传感器的最大压力 | 1.6 bar |
| 测量范围(绝对) | 1 - 1100 mbar |
| 控制范围 | 1 - 1100 mbar |
| 压力显示精度 | 1 mbar |
| 测量不确定性 | 1 mbar |
| 介质温度(气体) | 5 - 40 °C |
| 排气阀 | 是 |
| 冷凝盘管（出口） | 是 |
| 计时器 | 是 |
| 最小设置时间 | 1 s |
| 最大设置时间 | 6000 min |
| 在低压下的噪音 | 54 dB(A) |
| 物料接触部分材料 | PTFE, FFPM, PPS, NBR |
| 外壳材质 | 铸铝涂层 / 热塑性聚合物 |
| 手动模式 | 是 |
| 泵%模式 | 是 |
| 程序模式 | 是 |
| 图形功能 | 是 |
| 冷却器控制 | 是 |
| 真空泄漏测试 | 是 |
| 外形尺寸 | 260 x 502 x 377 mm |
| 重量 | 11 kg |
| 允许环境温度 | 5 - 40 °C |
| 允许相对湿度 | 80%（高达31°C），线性下降至最大50（@40°C） |
| DIN EN 60529 保护方式 | IP 20 |
| RS 232接口 | 是 |
| USB接口 | USB-C |
| 模拟输出 | 是 |
| 模拟输入 | 是 |
| 电压 | 100 - 240 V |
| 频率 | 50/60 Hz |
| 仪器输入功率 | 144 W |
| 仪器输入功率 待机 | 3.5 W |
| 保险丝 | 2x T4A 250V |
